Key Function Description:
1. ON/OFF

• A normal press switches the light on or off.
• A long press lets you set the current time, press + and – to adjust the hours and minutes. The time is displayed in 24h time.
• Press Mode to exit the time adjustment mode.

2. MIN/L+

• Brightness increase / Minute adjustment

3. HOUR/L-

• Brightness decrease / Hour adjustment

4. MODE

• A normal press switches the timer between the manual and automatic modes.
• A long press allows you to enter the automatic settings for each time block.
• After a long press of the mode key NO-1 and the time will flash alternately, choose the time you want the light to start turning on by pressing the + and – buttons i.e. 9:30AM
• Press the MODE key again and the brightness setting for that time will now flash. Adjust the brightness you want by pressing the + and – buttons to set the desired brightness i.e. 0%
• Press the MODE key again and now NO-2 and the time will flash alternately, choose the time you want by pressing the + and – buttons to set the second time i.e. 10:00AM
• Press the MODE key again and the brightness setting for that time will now flash. Adjust the brightness you want by pressing the + and – buttons to set the desired brightness i.e. 75%

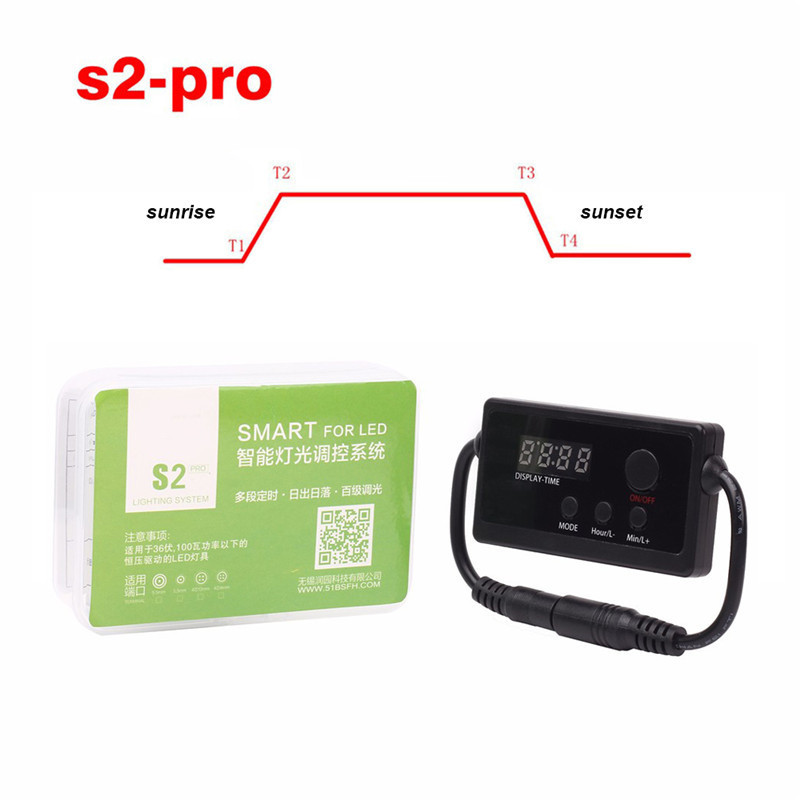

• The light will now start to turn on at 9:30AM and will ramp up gradually to 75% over 30 minutes. If you want your light to be at 75% for the day then set your next time block to 75% and then the last time block to 0%. If you want to change levels throughout the day then continue to cycle through the time blocks and set your desired levels. Press MODE to exit after setting.
• Please note that if the time is set to “”– : –“”, then there will be no action for that time block. Between the different time blocks the brightness will gradually increase or decrease to the next brightness setting. To set a constant brightness set the same brightness over two consecutive time blocks. If you need any assistance setting up your dimmer please reach out to us.

5. Display

• L00*/ time flashing indicates that the system is in manual mode. (L00* is the brightness level you have it set to in manual mode)
• AUTO/ time flashing shows that the system is in automatic mode, the system defaults to automatic mode when powered on.

In automatic mode you can intervene manually, for example if you turn off the light in automatic mode it will stay off until next automatic cycle starts.
